Thermowell

  • Threaded
  • Flanged
  • Welded

  • Threaded Thermowell: Installed using threaded connections; suitable for low to medium pressure and temperature applications. Easy to install and remove.

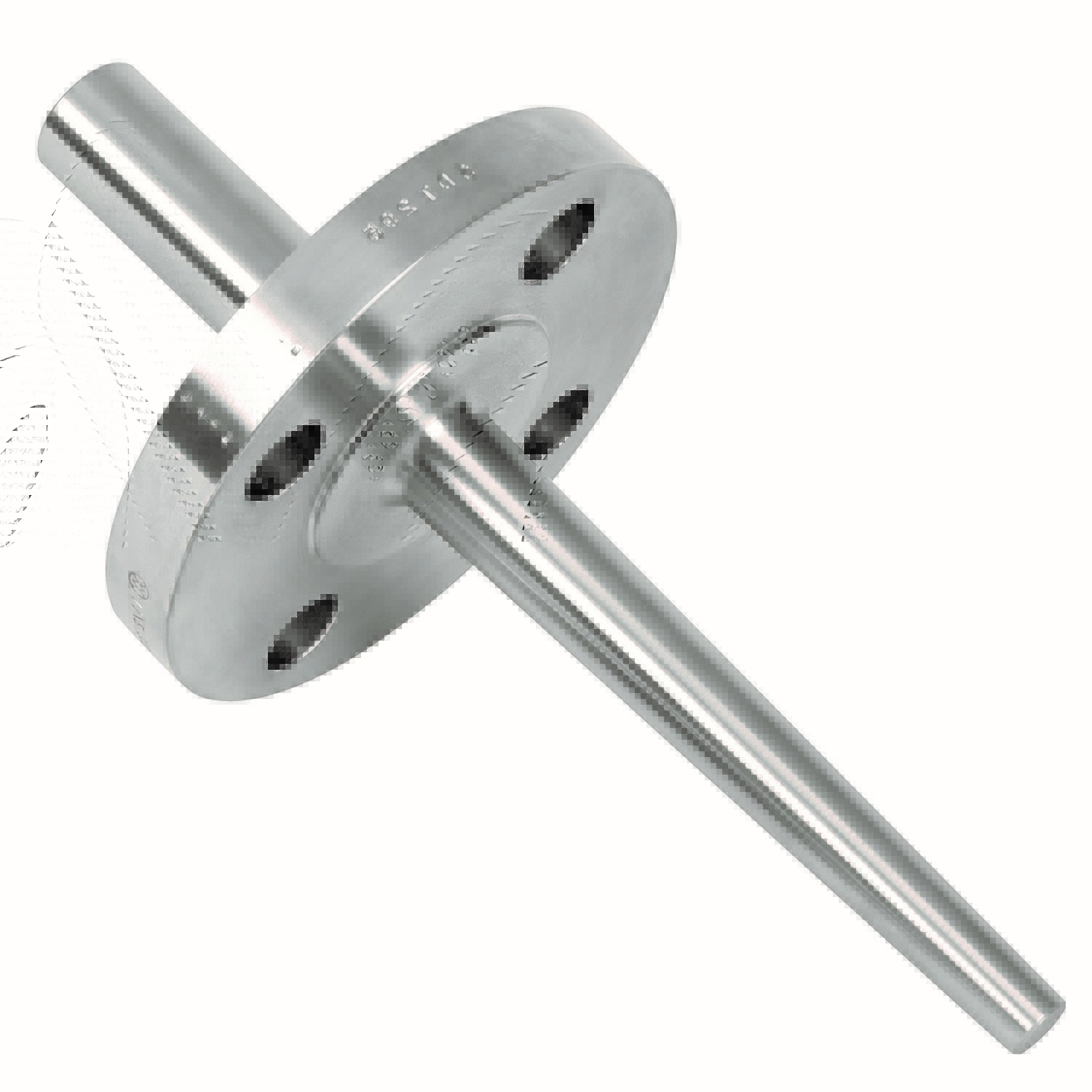

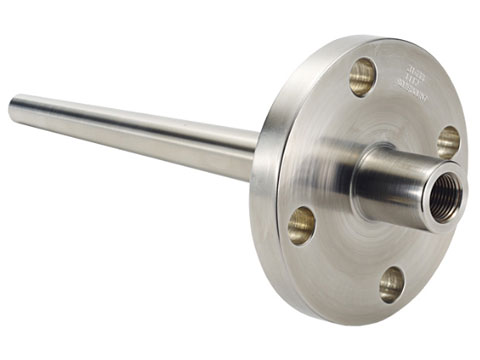

  • Flanged Thermowell: Mounted with a flange; ideal for high pressure, high temperature, and critical process applications.

  • Welded Thermowell: Permanently welded to the pipe or vessel; used where leakage prevention and mechanical strength are critical.

Category: Tag:

Description

A thermowell is a protective tube or enclosure used to shield temperature sensors (like thermocouples or RTDs) from harsh conditions in industrial processes. It allows the sensor to measure temperature without being directly exposed to the process fluid, pressure, or flow, thereby extending the sensor’s life and allowing easy replacement without shutting down the process.

Key Points About Thermowells:

  1. Material: Usually made of stainless steel, carbon steel, or other corrosion-resistant alloys.

  2. Shape/Design: Can be straight, tapered, stepped, or with threads/flanges for mounting.

  3. Function:

    • Protects sensors from corrosion, erosion, and high pressure.

    • Prevents process leaks when sensors are removed.

    • Reduces vibration damage to sensors.

  4. Applications:

    • Chemical processing

    • Oil & gas pipelines

    • Power plants

    • HVAC systems
